SPECIFICATIONS
| Nominal Input Level: |
|
-20 dBu |
| Input Impedance: |
|
1 M ohm |
| Nominal Output Level: |
|
-20 dBu |
| Output Impedance: |
|
1 k ohm |
| Recommended Load Impedance: |
|
10 k ohms or greater |
| Bypass: |
|
Buffered bypass |

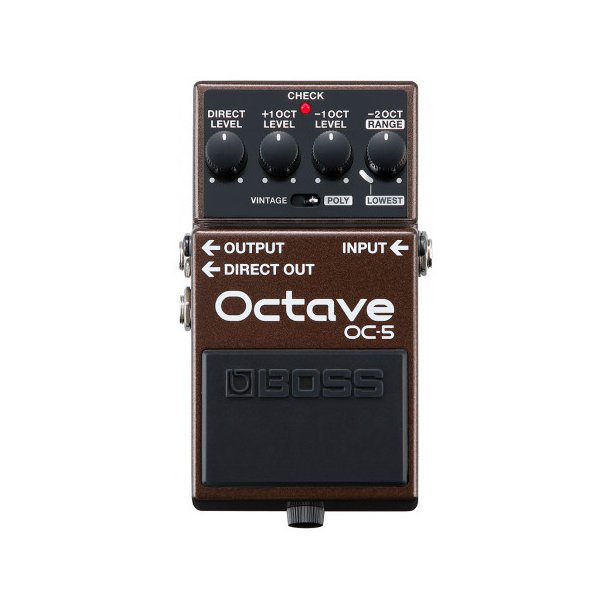

| Controls: |
|
Pedal switch, GUITAR/BASS switch, VINTAGE/POLY switch, DIRECT LEVEL knob, +1OCT knob, -1OCT knob, -2OCT/RANGE knob |
| Indicator; |
|
CHECK indicator (Serves also as battery check indicator) |
| Connectors: |
|
INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DIRECT OUT jack: 1/4-inch phone type

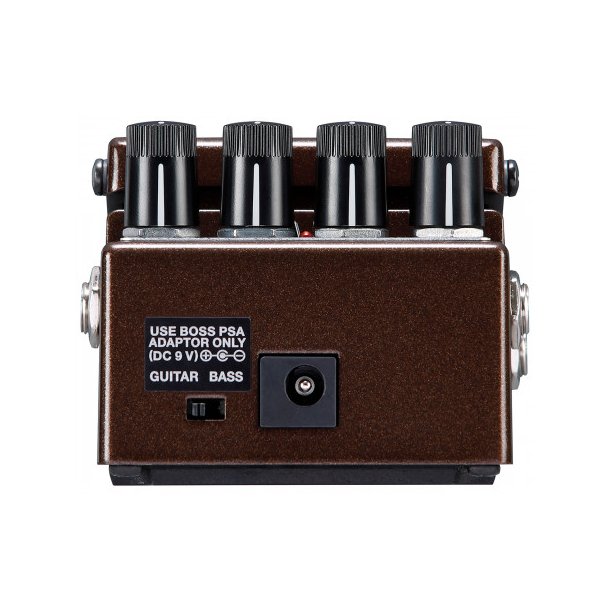

DC IN jack |
| Power Supply: |
|
Alkaline battery (9 V, 6LR61 or 6LF22)
AC adaptor (PSA series: sold separately) |
| Current Draw: |
|
55 mA |
| Expected battery life under continuous use: |
|
Alkaline: Approx. 7 hours *These figures will vary depending on the actual conditions of use. |
| Accessories: |
|
Owner's manual Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")Alkaline battery (9 V, 6LR61) |
| Options (sold separately): |
|
AC adaptor: PSA series |
Dimensions and weight
| Width: |
|
73mm |
| Depth: |
|
129mm |
| Height: |
|
59mm |
| Weight: |
|
410g |
* 0 dBu = 0.775 Vrms
*The specifications are subject to change without notice.
