Mackie PA-system (IP15 og IP18S)

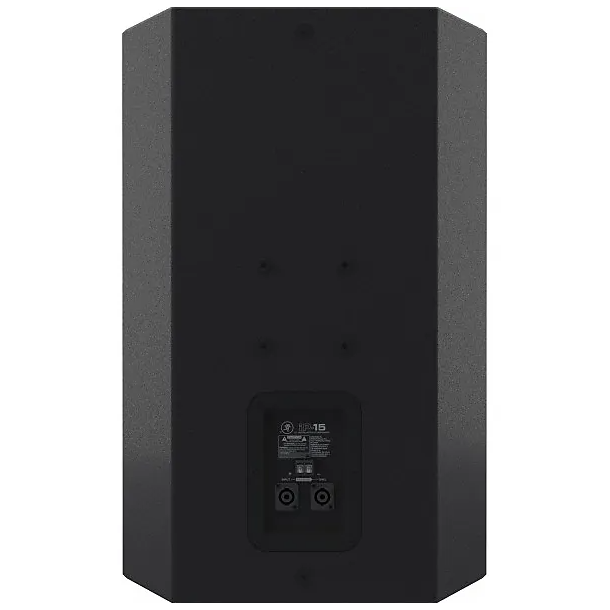

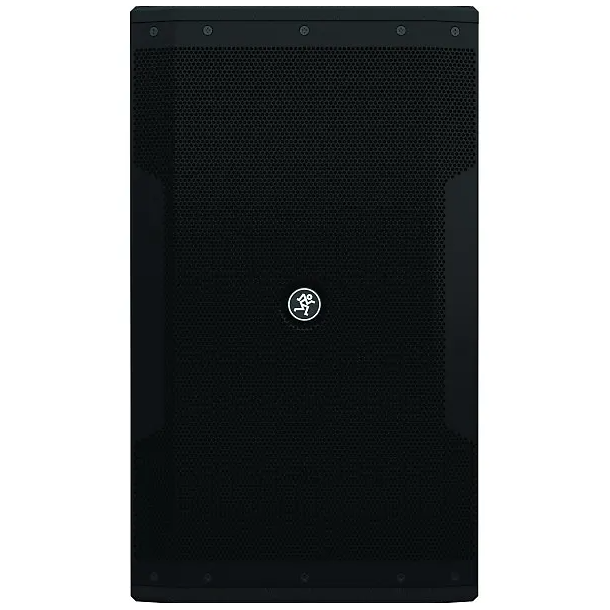

Mackie IP15

• 15″ 2-way low-profile installation loudspeaker
  • 15″ high-output ceramic woofer with 2.5″ voice coil for maximum output
  • 1.4″ titanium compression driver provides smooth, consistent high-frequency response
  • 8 x M10 rigging points and rotatable 90° x 50° horn for vertical/horizontal rigging (PA-A2 accessory)
  • Optional ceiling and wall mount accessories meet the needs of the most aesthetically demanding venues (iP-CM100 & iP-WM100 accessories)
  • Rotatable center logo allows for clean presentation in all configurations
  • Convenient terminal strip connectivity saves time and cost
  • Dual Neutrik® parallel connectors
  • Lightweight, compact and durable 15mm poplar cabinet construction
  • Companion iP-18S 18″ subwoofer extends low-frequency response and increases output in larger applications
  • Optional SP260 2×6 speaker processor delivers iP presets to get your system quickly dialed in

SPECIFICATIONS

• Frequency range (-10 dB): 40 Hz – 20 kHz
• Coverage pattern: 90° x 50°
• Power handling: 300 watts continuous / 600 watts program
• Max SPL: 126 dB
• Crossover frequency: 2.5 kHz
• Nominal impedance: 8Ω
• Weight: 45.2lbs / 20.5 kg
• Dimensions
• • Height: 26.7 in / 677 mm
  • Width (Front): 17.5 in / 445 mm
  • Width (Rear): 11.5 in / 292 mm
  • Depth: 17.4 in / 441 mm

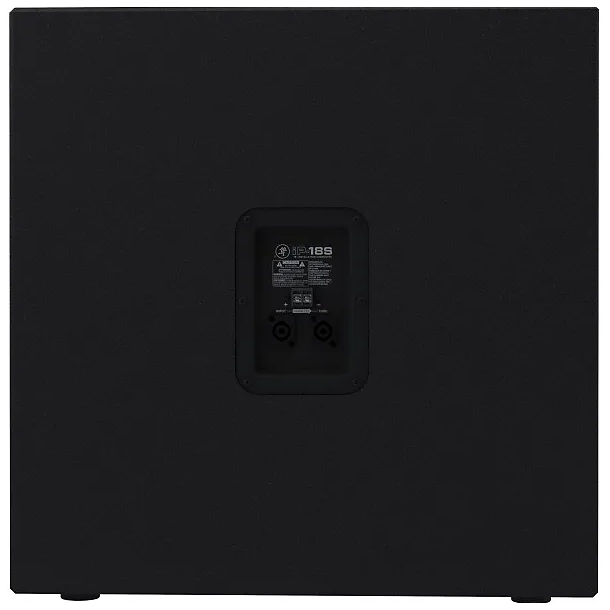

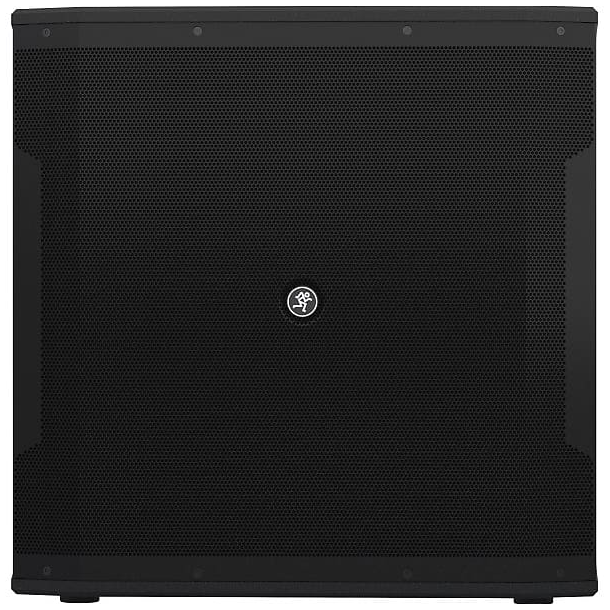

Mackie IP18S

• • 18″ high-output installation subwoofer
  • 18″ high-output ceramic woofer with 3″ voice coil for maximum output
  • Convenient terminal strip connectivity saves time and cost
  • Dual Neutrik® parallel connectors
  • Lightweight, compact and durable 15mm poplar cabinet construction
  • Optional SP260 2×6 speaker processor delivers iP presets to get your system quickly dialed in
• SPECIFICATIONS
• • Frequency range (-10 dB): 35 Hz – 150 Hz
  • Power handling: 400 watts continuous / 800 watts program
  • Max SPL: 132 dB
  • Nominal impedance: 8Ω
  • Internal low-pass filter: 115 Hz
  • Dimensions
  • • Height: 581 mm
    • Width (Front): 565 mm
    • Width (Rear): 565 mm
    • Depth: 608 mm
    • Weight: 26.7 kg
